IAFF Certificate No. E-17-0914 E-17-0914

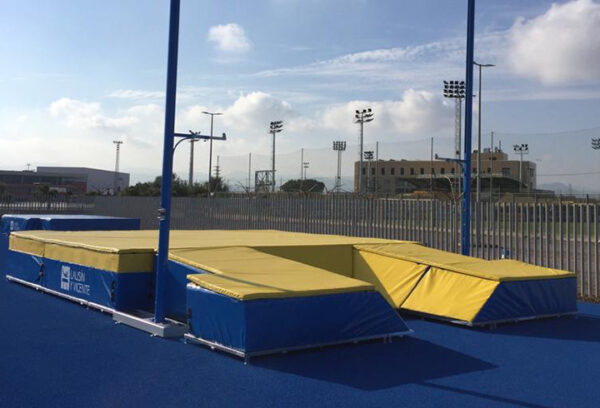

Landing area
8000x6000x800/550 mm pole vault landing area, designed and manufactured in compliance with WA international athletics regulations. The set is made of three independent blocks manufactured in polyurethane density 20 SS, forming air chambers inside it and lined with a laminated canvas cover. The modules are joined to one another by nylon straps and are covered by a special spike proof canvas mattress. The shape of the modules enables the position of high jump measuring devices in the lateral spaces. Free central space for pole vault box.
Steel tube support platform
Steel tube support platform for 8000x6000x100 mm pole vault landing area, manufactured in 40 x 20mm hot galvanised metal profile. It is divided into six independent areas for easy transportation and assembly. The metal structure is deployed to a full height of 100 mm by metal feet welded to prevent water coming into contact with the landing area.
Landing area cover
Made of laminated canvas covered with PVC. Equipped with a fixing system to the landing area to prevent it from being blown away by the wind. Essential to protect the outside landing area. This reference is for the 8000x6000x800/550 mm landing area. The standard colour is blue.
